Sale!
WILD FS M20

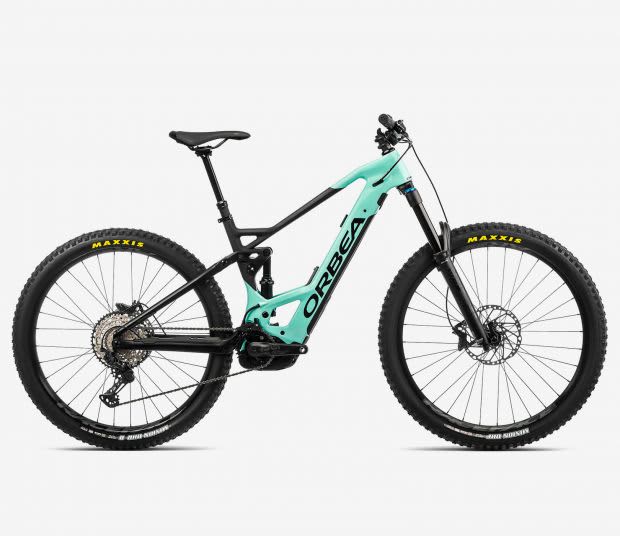

2022 Orbea Wild FS M20
Specifications
Product: Orbea Wild FS M20 E-Bike
Model Year: 2022
Riding Type: Enduro / All-Mountain
Wheel Size: 29″
Motor: Bosch Performance CX Cruise Gen4 BDU480CX
Battery: Bosch Powertube Horizontal US BBP295, ABUS locking cover Battery Capacity: 625 Wh
Display/Remote: Bosch Performance Purion, multiple mounting positions Modes: Turbo, Sport/eMTB, Tour, Eco, Walk Assist
Frame Material: Carbon Fiber
Frame Material Details: Carbon front triangle, aluminum rear triangle, AlloyLink upper suspension linkage, polymer battery cover, molded chainstay and seatstay protection
Rear Travel: 160mm
Rear Shock: FOX FLOAT DPS Performance, EVOL LV, 3-position adjust, custom tune, trunnion mount, 205mm x 65mm Fork: FOX FLOAT 38 Performance, GRIP damper, 3-position adjust, e-bike optimized, 44mm offset
Fork Travel: 160mm
Head Tube Diameter: Tapered, 1.125″ top, 1.5″ bottom
Headset: ACROS Block Lock, with OC battery key holder
Stem: Orbea OC1, 3D forged alloy, 55mm length, 7° rise, 35mm bar clamp
Grips: Orbea OC
Brakes: Shimano M420, 4-piston Brake Levers: Shimano M420
Shifters: Shimano Deore M6100, 12-speed
Rear Derailleur: Shimano Deore XT M8100, 12-speed, SHADOW RD+, SGS cage
Chainguide: Orbea OC upper slider
Cranks: e*thirteen Plus Alloy, 160mm length
Chainrings: e*thirteen Plus, 32 tooth
Chain: Shimano Deore M6100, 12-speed
Cassette: Shimano SLX M7100, 12-speed, 10-51 tooth
Rims: Race Face AR 30c wheelset, tubeless ready
Hubs: Race Face AR 30c wheelset, 15x110mm Boost front, 12x148mm Boost rear with MICRO SPLINE driver
Spokes: Race Face AR 30c wheelset
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO+, TR, 120 TPI, 29″ x 2.6″ Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO+, TR, 120 TPI, 29″ x 2.6″
Saddle: Selle Royal Vivo
Seatpost: Orbea OC MC20 Mountain Control dropper; OC Horizontal remote lever 125mm drop, Diameter: 31.6mm
Rear Dropout / Hub Dimensions: 12x148mm Boost
Bottle Cage Mounts: One inside front triangle
Additional information
| Color | Ice Green – Black |
|---|---|
| Size | S/M |
